HBL7505IV HWD

Product Details

Manufacturer part number:
HBL7505IV
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Description

Hubbell complete line of metal and non-metallic raceway is optimal for delivering power and technology to the point of use in laboratories, classrooms, offices and more while offering maximum flexibility for changing needs. Raceway offers the ability to provide standard convenience receptacles and datacomm connections, as well as serve the power requirements of larger equipment. Receptacles or datacomm ports can also be easily added where needed.

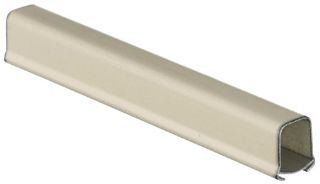

Wiring Device-Kellems, HBL7505IV, Raceway Base and Cover, Series: HBL750, 5 ft Length, 0.76 in Width, 0.85 in Height, 1 Channels, Integral Cover, Steel, Painted Ivory

Application

Datacom and Oversized Neutral Applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 5 | CSA Standard C22.2 File No. 62 | File No. E253976 | E253830 | E253833

Features

  • Hubbell® Handi-Screw® eliminates difficult to install long screws for easier installation
  • Aluminum raceway resists oxidation, corrosion and fading
  • Enhanced datacom capabilities
  • Largest single channel, low-profile raceway available in its class
  • Allows up to three category 5e or two category 6 cables
  • Complete line of transition fittings for HBL750 series metal raceway
  • 0.4 in channel area

Specifications

Color:Ivory
Country of Origin:US
Cover Type:Integral
Finish:Painted Ivory
Height:0.85 in
Length:5 ft
Material:Steel
Number of Channels:1
Series:HBL750
Width:0.76 in

Products Specifications

Brand Name
Hubbell
