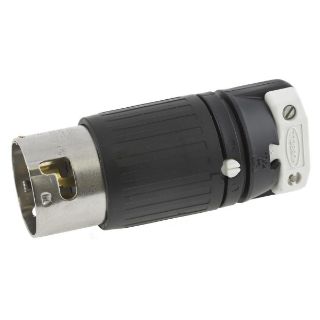

Actual Product May Vary From Image

HBL7765C HWD

Name: HBL7765C HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL7765C HWD
Price: 173.40 USD
Availability: InStock

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL7765C 1-Phase Extra Heavy Duty Grounding Standard Sized Male Locking Plug, 600 VAC/240 VDC, 50 A, 3 Poles, 4 Wires, Black/White

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL7765C

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	2
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$173.40

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Extra Heavy Duty Grounding Standard Sized Male

Alternate Supplier #

Grainger - 3D275

Description

Hubbell® Insulgrip® plugs and connectors continue our long standing tradition of leadership as well as innovative design. The tough nylon body provides impact and chemical resistance commonly needed in the entertainment industry. The durable and powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals. Its these and many other features that set Hubbell® performance above all others.

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 1-Phase Extra Heavy Duty Grounding Standard Sized Male, Series: HBL®, 600 VAC/240 VDC, 50 A, 3 Pole, 4 Wires, Industrial Grade, 0.83 to 1.25 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.56 in L x 2.56 in W x 6.37 in H Dimensions

Application

Dry Locations, Power Connection and Indoor Applications

Standards

RoHS Compliant | UL 498 | CSA C22.2 No. 42/0.17 | UL HB Flammability Rating

Features

Super tough nylon housing offers better impact qualities
Stainless steel shroud protects contacts and prevents mismating
Heavy duty two piece external cord clamp provides maximum strain relief
Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
Thermoplastic polyester interior provides heat resistance and impact strength

Specifications

Amperage Rating:	50 A
Color:	Black/White
Cord Diameter:	0.83 to 1.25 in
Country of Origin:	US
Dimensions:	2.56 in L x 2.56 in W x 6.37 in H
Enclosure:	IP20
Grade:	Industrial
Material:	Composite
Number of Poles:	3
Number of Wires:	4
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	600 VAC/240 VDC
