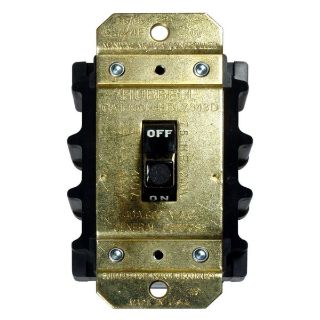

HBL7842D HWD

Name: HBL7842D HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL7842D HWD
Price: 109.00 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL7842D

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$109.00 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Manual Open Standard

Description

Wiring Device-Kellems Circuit-Lock® AC Motor Disconnect Switch, Manual Open Standard, 600 VAC, 40 A, 15 hp, 2 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire/Pressure Screw Terminal, -40 to 75 deg C, 3.78 in H x 2.25 in W x 2.43 in D Dimensions, Thermoset

Application

For motor starting without overload protection

Standards

RoHS Compliant | UL 508 | CSA Certified

Features

Zero leakage current
Strong ON/OFF action with a quick make and slow break operation
Provides long life reliability
Provides high resistance to electrical arc tracking
Withstands high temperatures
Excellent dimensional stability and superior dielectric strength
Clamping plate for secure back or side wiring
For close wall applications and finger safe environments
Switches and lighting controls, industrial grade, disconnect switches
2 hp at 120 VAC, 5 hp at 240 VAC, 10 hp at 480 VAC, 15 hp at 600 VAC power rating at 1-phase

Specifications

Actuator Type:	Toggle
Amperage Rating:	40 A
Country of Origin:	PR
Dimensions:	2.25 in W x 2.43 in D x 3.78 in H
Enclosure Type:	Open
Horsepower:	15 hp
Material:	Thermoset
Mounting Type:	Threaded
Number of Poles:	2
Phase:	1 ph
Temperature Rating:	-40 deg C
Terminal Type:	Back/Side Wire/Pressure Screw
Voltage Rating:	600 VAC
