HBL7862D HWD

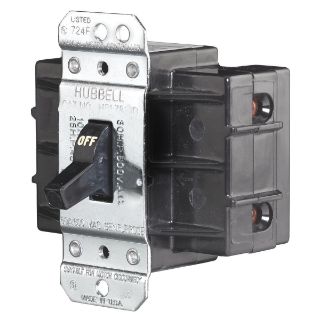

Picture of HBL7862D HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL7862D
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 6 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$162.00 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Standard

Description

Wiring Device-Kellems Circuit-Lock® AC Motor Disconnect Switch, 1-Phase Standard, 600 VAC, 60 A, 36000 W Power, 2 Pole, Toggle Actuator, Pressure Screw Terminal Connection, Open Enclosure, Stainless Steel, Environmental Conditions: -40 deg C, 3.78 in L x 3.56 in W x 2.83 in H

Application

For motor starting without overload protection

Standards

RoHS Compliant | CSA C22.2 File No.14 and CSA File No. LR46186 | UL 508 | UL File No. E70402

Features

  • Zero leakage current
  • All switches are suitable as a motor disconnect
  • Strong on/off action with a quick make and slow break operation provides long life and reliability
  • Heat resistant thermoset body provides superior dielectric strength
  • 10 hp at 240 VAC, 15 hp at 480 VAC, 20 hp at 600 VAC 3-phase power rating

Specifications

Actuator:Toggle
Amperage Rating:60 A
Connection:Back/Side Wire/Pressure Screw
Country of Origin:PR
Dimensions:2.4 in D
Enclosure:Open
Environmental Conditions:-40 deg C
Material:Stainless Steel
Mounting:Threaded
Number of Poles:2
Operating Cycles:10000 Cycles
Power Rating:36000 W
Series:HBL
Voltage Rating:600 VAC

Products Specifications

Amperage Rating
60 A
Brand Name
Hubbell Wiring Device-Kellems
Enclosure
OPEN
Mounting
Screw Mount
Number of Poles
2
Type
Load Switch
Voltage Rating
600 VAC
