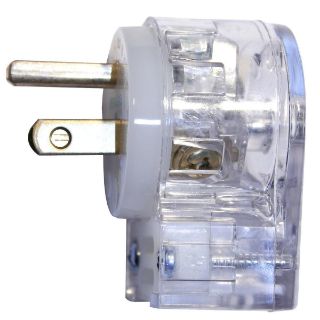

Picture of HBL8215CAT HWD
Actual Product May Vary From Image

HBL8215CAT HWD

Wiring Device-Kellems Insulgrip® HBL8215CAT 1-Phase 4-Position Angled Grounding Male Standard Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Transparent
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: HBL8215CAT
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 22 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$30.70

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase 4-Position Angled Grounding Male Standard

Alternate Supplier #

Grainger - 5Z869

Description

Wiring Device-Kellems Insulgrip® Straight Blade Plug, 1-Phase 4-Position Angled Grounding Male Standard, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15P, Hospital Grade, IP20 Enclosure, 0.25 to 0.655 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite/Nylon, Transparent, 2.11 in H x 1.53 in W x 1.22 in D

Standards

RoHS Compliant | UL 498 File No. E1706 | CSA C22.2 No. 42 | CSA File No. 285 | Federal Specification W-C-596 | NEMA WD1/WD5

Features

  • All portable cord
  • Cord mounted
  • Individual wiring terminals completely enclosed
  • Powerful, offsetting cord grips clamp on individual conductors
  • Transparent for easy visual inspection of termination
  • Nylon natural blade holder
  • Polycarbonate to clear retainer
  • 0.06 in brass contact blades, 0.04 in copper alloy ground contact blade
  • #8-32 brass/nickel plated terminal screw for neutral and #8-32 brass, multiple drive (green) ground screw
  • Withstands 2000 VAC minimum dielectric voltage
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
  • Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
  • 18 to 10 AWG copper stranded or solid wire size
  • Ratings are a permanent part of the device product identification

Specifications

Amperage Rating:15 A
Color:Transparent
Cord Diameter:0.25 to 0.655 in
Country of Origin:US
Dimensions:1.52 in W x 1.21 in D x 2.08 in H
Enclosure:IP20
Grade:Hospital
Horsepower:1/2 hp
Material:Composite
NEMA Rating:5-15P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
