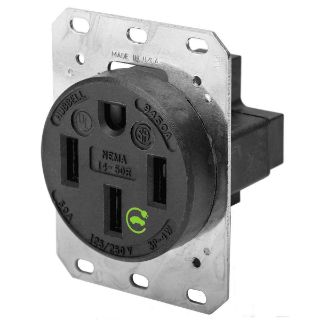

HBL9450A HWD

Name: HBL9450A HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL9450A HWD
Price: 141.23 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL9450A

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$141.23 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Heavy Duty Single Standard

Alternate Supplier #

Grainger - 5Z885

Description

Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Grounding Heavy Duty Standard Single Screw Mount, 125/250 VAC, 50 A, 3 hp, 3 Pole, 4 Wires, 14-50R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Black, 3.28 x 2.75 x 2.44 in

Application

Dry Location and Indoor Applications

Standards

UL 498 File No. E2186 | CSA Certified | NEMA WD1/WD5

Features

Withstands 2000 VAC minimum dielectric voltage
Certified for current interrupting at full rated current
Catalog number, ratings and certifications molded in face
Sequenced contacts assure protection
1-piece design power and ground contact
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
Terminals identified in accordance with UL 498 and CSA terminal identification
3/8 in Allen head, plated steel ground screw
Glass reinforced PET top material
0.04 in brass contact
0.062 in plated steel mounting strap
Steel zinc plated mounting screw
Copper box terminal
Made of glass reinforced PET
10 to 4 AWG wire size

Specifications

Amperage Rating:	50 A
Color:	Black
Country of Origin:	US
Dimensions:	3.28 in H x 2.75 in W x 2.44 in D
Enclosure:	IP20
Grade:	Industrial
Horsepower:	3 hp
Material:	Composite/Thermoplastic
NEMA Rating:	14-50R
Number of Poles:	3
Number of Wires:	4
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back and Side Wire/Screw
Voltage Rating:	125/250 VAC
