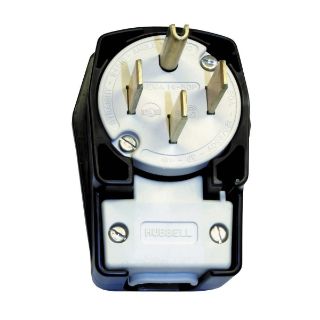

HBL9452C HWD

Name: HBL9452C HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL9452C HWD
Price: 129.98 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL9452C

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$129.98 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Standard Cord Mount

Alternate Supplier #

Grainger - 5C791

Description

Wiring Device-Kellems, HBL9452C, Straight Blade Plug, 1-Phase Grounding Standard Cord Mount, 125/250 VAC, 50 A, 2 hp, 3 Pole, 4 Wires, 14-50P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.625 to 1.31 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 4.5 x 3.38 x 2.37 in Dimensions

Standards

UL 498, File No. E1706 Listed | UL 94-HB Flammability Rating | CSA C22.2 No. 42, 280 | NEMA WD1/WD5 | RoHS Compliant

Features

All portable cord
Cord mounted
Withstands 2000 VAC minimum dielectric voltage
Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
0.1 in brass contact blades, 0.075 in ground contact blade
Steel zinc plated terminal screw, 3/8 in Allen head, plated steel ground screw
Certified for current interrupting at full rated current
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
14 to 12 AWG solid or stranded copper conductor terminal accommodation
UL 94-HB or better flammability rating
Glass reinforced PET blade holder and retainer material, glass reinforced polyester cord clamp

Specifications

Amperage Rating:	50 A
Color:	Black
Cord Diameter:	0.625 to 1.31 in
Country of Origin:	US
Dimensions:	4.5 x 3.38 x 2.37 in
Enclosure:	IP20
Grade:	Commercial/Industrial
Horsepower:	2 hp
Material:	Nylon
NEMA Rating:	14-50P
Number of Poles:	3
Number of Wires:	4
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125/250 VAC
