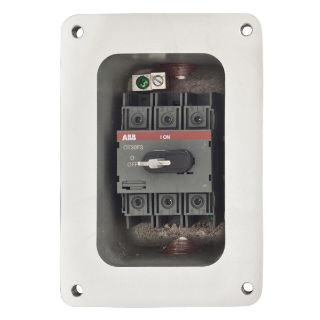

Picture of HBLB7NFD13A HWD
Actual Product May Vary From Image

HBLB7NFD13A HWD

Wiring Device-Kellems Circuit-Lock® HBLB7NFD13A 2-Position Complete Non-Fused Standard Hazardous Location Disconnect Switch, 600 V, 30 A, 30 hp, 2-Position Contact, 3 Poles
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: HBLB7NFD13A
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$3,289.99

Product Details

Brand Name

Wiring Device-Kellems

Type

2-Position Complete Non-Fused Standard

Description

Wiring Device-Kellems Circuit-Lock® Hazardous Location Disconnect Switch, 2-Position Complete Non-Fused Standard, 600 V, 30 A, 30 hp, 60 Hz Frequency, 3 Pole, 2-Position Contact Form, Lever Actuator, Foot Mounting, Screw Terminal, -40 to 67 deg C, 8.13 x 5.75 x 6.31 in, Copper Free Aluminum, Gray, Powder Polyester Painted

Application

Extra Heavy Duty Industrial and Indoors/Outdoors/Hazardous Locations

Standards

UL File No. 746C/98 | OSHA Approved | CSA Certified

Features

  • Hazardous locations
  • Copper-free aluminum construction to prevent corrosion
  • Compact NEMA 4X enclosure and footprint allows easy installation in tight locations
  • Gasketed flange with O-ring located inside bolt circle to seal out moisture

Specifications

Actuator Type:Lever
Amperage Rating:30 A
Color:Gray
Contact Form:2-Position
Country of Origin:US
Dimensions:8.13 x 5.75 x 6.31 in
Finish:Powder Polyester Painted
Frequency Rating:60 Hz
Horsepower:30 hp
Material:Copper Free Aluminum
Mounting Type:Foot
Number of Poles:3
Temperature Rating:-40 to 67 deg C
Terminal Type:Screw
Voltage Rating:600 V
