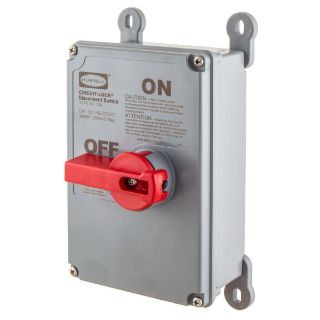

Actual Product May Vary From Image

HBLDS10AC HWD

Name: HBLDS10AC HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBLDS10AC HWD
Price: 843.59 USD
Availability: InStock

Wiring Device-Kellems Circuit-Lock® HBLDS10AC 2-Position Non-Fusible Standard Disconnect Switch With HBLAC1 Auxiliary Contact, 600 VAC, 100 A, 50 hp, 2-Position Contact, 3 Poles

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBLDS10AC

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
2	0	2
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$843.59

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

2-Position Non-Fusible Standard

Description

Wiring Device-Kellems Circuit-Lock® Disconnect Switch, 2-Position Non-Fusible Standard, 600 VAC, 100 A, 50 hp, 3 ph, 60 Hz Frequency, 3 Pole, 3 Wires, 2-Position Contact Form, Lever Operated Actuator, NEMA 4X Enclosure, Foot Mounting, Screw Terminal, -40 to 67 deg C, 8 in H x 6.87 in W x 5.94 in D Dimensions, Composite, Gray

Application

Extra Heavy Duty Industrial Applications

Standards

RoHS Compliant | UL 746C | CSA Certified | NSF Certified

Features

Adjustable mounting feet
Stainless steel hardware for corrosion resistance
Lockable handle to meet OSHA lockout/tag out regulations
Non-metallic enclosure non-conducting, internal frame automatically bonds all grounds
For motor disconnects
Snap action, 6000 operating cycles, 60000 W power rating

Specifications

Actuator Type:	Lever
Amperage Rating:	100 A
Color:	Gray
Contact Form:	2-Position
Country of Origin:	CN
Dimensions:	11 x 7.75 x 5.94 in
Enclosure Type:	NEMA 4X
Frequency Rating:	60 Hz
Horsepower:	50 hp
Material:	Composite
Mounting Type:	Foot
Number of Poles:	3
Number of Wires:	3
Phase:	3 ph
Temperature Rating:	-40 to 67 deg C
Terminal Type:	Screw
Voltage Rating:	600 V
