HBLDS10VFD HWD

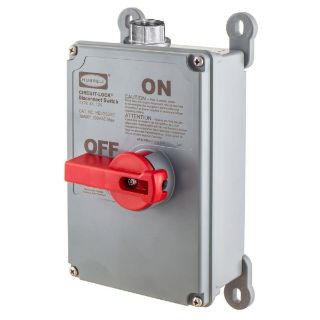

Picture of HBLDS10VFD HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBLDS10VFD
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Industrial Grade Labelless Non-Fusible Non-Metallic Standard

Description

Hubbell® Circuit-Lock® non-metallic disconnects are frequently used in harsh environments. Frequent wash down, hot and high pressure water, caustic cleaning agents and UV light are common place. Hubbell® new laser marked covers ensure that ratings are now permanently marked.
Wiring Device-Kellems Circuit-Lock® Disconnect Switch, Industrial Grade Labelless Non-Fusible Non-Metallic Standard, 120 VAC, 100 A, 7.5 hp, 3 ph, 60 Hz Frequency, 2 Pole, 65 kA Short Circuit, NEMA 4X/IP69K Enclosure, Threaded Mounting, Screw Terminal, -40 to 75 deg C, 11 x 7.75 x 5.94 in, Composite, Gray

Application

For use with variable frequency drives, circuit control, indoor and outdoor applications

Standards

RoHS Compliant | cUL Listed | UL Listed | NSF Approved | CSA Certified

Features

  • Permanent labelless marking
  • Molded in corrosion and impact-resistant material that is UV stabilized
  • Highly visible red handle which meets OSHA lockout/tagout capabilities
  • Cover cannot be removed when switch is in the "ON" position
  • Accepts up to 2 auxiliary contact
  • Internal frame automatically bonds all grounds
  • Molded in conduit opening and field installed hub
  • Reversible interior accommodates top or bottom conduit opening
  • Integrates a verified break before break auxiliary contact factory installed in HBLDS series
  • Prevents downtime from OUT of sequence equipment shutdowns

Specifications

Amperage Rating:100 A
Color:Gray
Country of Origin:PL
Dimensions:11 x 7.75 x 5.94 in
Enclosure Type:NEMA 4X/IP69K
Frequency Rating:60 Hz
Horsepower:7.5 hp
Material:Composite
Mounting Type:Threaded
Number of Poles:2
Phase:3 ph
Short Circuit Current Rating:65 kA
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:120 VAC
