HBLDS3AC HWD

Name: HBLDS3AC HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBLDS3AC HWD
Price: 423.36 USD
Availability: InStock

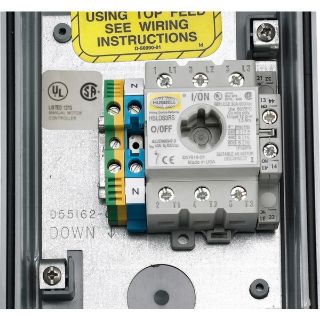

Wiring Device-Kellems Circuit-Lock® HBLDS3AC 2-Position Non-Fusible Standard Enclosed Disconnect Switch With Auxiliary Contacts, 600 V, 30 A, 15 hp, 2-Position Contact, 3 Poles

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBLDS3AC

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
19	0	12
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$423.36

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

2-Position Non-Fusible Standard

Description

Wiring Device-Kellems Circuit-Lock® Enclosed Disconnect Switch, 2-Position Non-Fusible Standard, 600 V, 30 A, 15 hp, 3 ph, 60 Hz Frequency, 3 Pole, 3 Wires, 2-Position Contact Form, Lever Actuator, NEMA 4X Enclosure, Foot Mounting, Screw Terminal, -40 to 75 deg C, 8.5 x 6 x 4.12 in, Composite, Gray

Application

Extra Heavy Duty Industrial Applications

Standards

CSA Certified | RoHS Compliant | UL Listed

Features

Adjustable mounting feet
Stainless steel hardware for corrosion resistance
Lockable handle to meet OSHA lockout tag out regulations
Non metallic enclosure, non conducting
Internal frame automatically bonds all grounds

Specifications

Actuator Type:	Lever
Amperage Rating:	30 A
Color:	Gray
Contact Form:	2-Position
Country of Origin:	PL
Dimensions:	8.5 in H x 6 in W x 4.12 in D
Enclosure Type:	NEMA 4X
Frequency Rating:	60 Hz
Horsepower:	15 hp
Material:	Composite
Mounting Type:	Foot
Number of Poles:	3
Number of Wires:	3
Phase:	3 ph
Temperature Rating:	-40 to 67 deg C
Terminal Type:	Screw
Voltage Rating:	600 V
