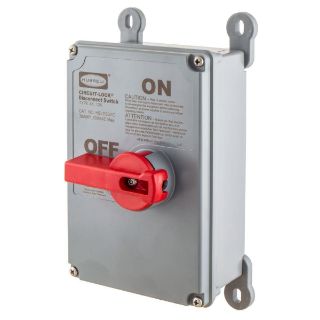

Picture of HBLDS3ACNK HWD
Actual Product May Vary From Image

HBLDS3ACNK HWD

Wiring Device-Kellems Circuit-Lock® HBLDS3ACNK 2-Position Industrial Grade Labelless Non-Metallic Standard Unfused Disconnect Switch With HBLAC1 Auxiliary Contact, 600 V, 30 A, 15 hp, 2-Position Contact, 3 Poles
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: HBLDS3ACNK
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 10
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$423.36

Product Details

Brand Name

Wiring Device-Kellems

Type

2-Position Industrial Grade Labelless Non-Metallic Standard Unfused

Description

Hubbell® Circuit-Lock® non-metallic disconnects are frequently used in harsh environments. Frequent wash down, hot and high pressure water, caustic cleaning agents and UV light are common place. Hubbell® new laser marked covers ensure that ratings are now permanently marked.
Wiring Device-Kellems Circuit-Lock® Disconnect Switch, 2-Position Industrial Grade Labelless Non-Metallic Standard Unfused, 600 V, 30 A, 15 hp, 3 ph, 60 Hz Frequency, 3 Pole, 65 kA Short Circuit, 2-Position Contact Form, Lever Actuator, NEMA 4X Enclosure, Foot Mounting, Screw Terminal, -40 to 75 deg C, 8.5 x 6 x 4.12 in, Composite, Gray

Application

Extra Heavy Duty Industrial Applications

Standards

cULus Listed | NSF Certified | UL 746C

Features

  • Molded-in conduit opening and field installed hub
  • Internal frame automatically bonds all grounds
  • Reversible interior accommodates top or bottom conduit opening
  • Without conduit knockout or conduit fitting
  • Non-metallic labelless

Specifications

Actuator Type:Lever
Amperage Rating:30 A
Color:Gray
Contact Form:2-Position
Country of Origin:PL
Dimensions:8.5 in L x 6 in W x 4.12 in H
Enclosure Type:NEMA 4X
Frequency Rating:60 Hz
Horsepower:15 hp
Material:Composite
Mounting Type:Foot
Number of Poles:3
Phase:3 ph
Short Circuit Current Rating:65 kA
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:600 V
