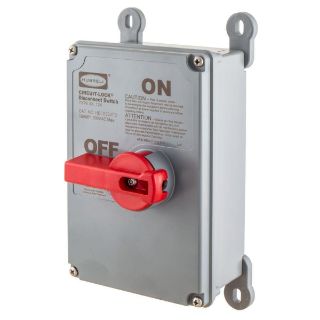

Actual Product May Vary From Image

HBLDS6 HWD

Name: HBLDS6 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBLDS6 HWD
Price: 568.64 USD
Availability: InStock

Wiring Device-Kellems Circuit-Lock® HBLDS6 2-Position Labelless Non-Fusible Standard Disconnect Switch, 600 VAC, 60 A, 40 hp, 2-Position Contact, 3 Poles

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBLDS6

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$568.64

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

2-Position Labelless Non-Fusible Standard

Description

Hubbell® Circuit-Lock® non-metallic disconnects frequently used in harsh environments. Frequent wash down, hot and high pressure water, caustic cleaning agents and UV light are common place. Hubbell® new laser marked covers ensure that ratings are now permanently marked.

Wiring Device-Kellems Circuit-Lock® Disconnect Switch, 2-Position Labelless Non-Fusible Standard, 600 VAC, 60 A, 40 hp, 60 Hz Frequency, 3 Pole, 3 Wires, 2-Position Contact Form, Lever Operated Actuator, NEMA 4/4X/12K/IP67 Enclosure, Foot Mounting, Screw Terminal, -40 to 67 deg C, 11 in L x 7.75 in W x 5.94 in H Dimensions, Composite, Gray

Application

Extra Heavy Duty Industrial Applications

Standards

RoHS Compliant | NSF Certified | cUL Listed | UL 746C

Features

Permanent labeless marking
Molded in corrosion and impact resistant material that is UV stabilized
SCCR rating of 65 kA when protected by class J fuses
Highly visible red handle which meets OSHA LO/TO capabilities
Cover cannot be removed when switch is in the "On" position
Accepts upto two auxiliary contact
Snap action, 6000 operating cycles, 36000 W power rating

Specifications

Actuator Type:	Lever
Amperage Rating:	60 A
Color:	Gray
Contact Form:	2-Position
Country of Origin:	CN
Dimensions:	11 in L x 7.75 in W x 5.94 in H
Enclosure Type:	NEMA 4/4X/12K/IP67
Frequency Rating:	60 Hz
Horsepower:	40 hp
Material:	Composite
Mounting Type:	Foot
Number of Poles:	3
Number of Wires:	3
Temperature Rating:	-40 to 67 deg C
Terminal Type:	Screw
Voltage Rating:	600 VAC
