HBLS430P7W HWD

Name: HBLS430P7W HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBLS430P7W HWD
Availability: OutOfStock

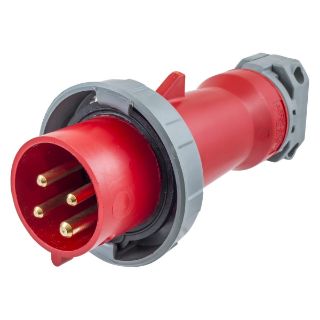

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBLS430P7W

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Non-Metallic Male Watertight

Description

Wiring Device-Kellems AdvAntAge™ Mating Plug, 3-Phase Grounding Non-Metallic Male Watertight, 480 VAC, 30 A, 20 hp, 3 Pole, 4 Wires, Commercial/Industrial Grade, Pressure Screw Terminal, Brass, Red

Application

Industrial and Commercial Applications

Standards

ARRA Compliant | Buy American Act Compliant | UL 498 | IEC 60309 | RoHS Compliant

Features

Spring loaded disconnect button oversized for easy actuation with gloved hands
Impact resistant cover arm compact and durable internal swing arm is fully shrouded protecting it from damage
Power indicating LED lights provides visual verification of power when connected
Spring loaded cover loaded to the open position, reminding users that the cover must be secured to ensure maximum ingress protection
Ergonomic design Hubbell® puts the advantage into the palm of your hands with the easy-to-use leverage grip design from Hubbell
Uniquely designed for the most extreme wash down procedures, withstanding hot and high pressure water in addition to excessively dusty environments

Specifications

Amperage Rating:	30 A
Color:	Red
Country of Origin:	US
Enclosure:	NEMA 4X/IP67/IP69K
Grade:	Commercial/Industrial
Horsepower:	20 hp
Material:	Brass
Number of Poles:	3
Number of Wires:	4
Terminal Type:	Pressure Screw
Voltage Rating:	480 VAC
