HBLS460R9W HWD

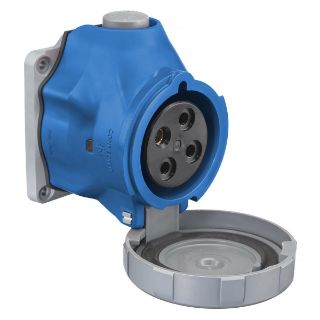

Picture of HBLS460R9W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBLS460R9W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,020.12 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Switch Rated

Description

The Advantage™ Series has a UL witnessed IP69K and 4X, 12 environmental rating, two power indicating LED, continuous ground engagement, labelless laser markings and a compact and ergonomic design. Hubbell® pin and sleeve connections have always been safe - that hasn't changed. The Advantage™ Series simply has more advantage.
Wiring Device-Kellems HBL® Advantage™ Pin and Sleeve Receptacle, 3-Phase Grounding Switch Rated, 250 VAC, 60 A, 10 hp, 3 Pole, 4 Wires, 4X NEMA Rating, IP69K Enclosure, -40 to 75 deg C, Screw Terminal, Composite, Blue, 4.52 in L x 5.09 in W

Standards

RoHS Compliant | CSA C22.2 No. 0.17 | IEC 60309-1 | 2 | cULus 50E | 2682

Features

  • The ergonomic device is easy to keep clean making it ideal for hygienic food processing facilities
  • Unswitched feed-through ground pin is first to make and last to break followed by switched neutral and phase contacts
  • Mates with existing installed base of IEC 60309-2 pin and sleeve devices
  • Color coded by voltage for easy identification of mating devices
  • Product ratings are laser marked into the device and will not wash off for easy permanent identification
  • Device is built to withstand wet and harsh environments
  • Highly visible and long lasting green LED lights on both sides of the device provide visual verification of power when connected

Specifications

Amperage Rating:60 A
Color:Blue
Country of Origin:PR
Dimensions:4.52 in L x 5.09 in W
Enclosure:IP69K
Horsepower:10 hp
Material:Composite
NEMA Rating:4X
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:250 VAC
