HCU8MN2AMNNNGN DLG

Name: HCU8MN2AMNNNGN DLG
Brand: Dialight Corporation
SKU: HCU8MN2AMNNNGN DLG
Availability: OutOfStock

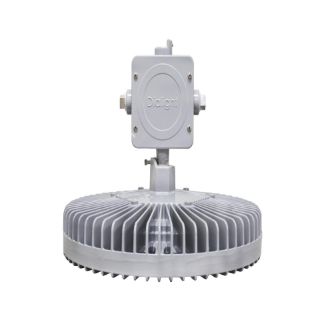

Actual Product May Vary From Image

Product Details

Manufacturer:

Dialight Corporation

Manufacturer part number:

HCU8MN2AMNNNGN

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Vigilant®

Type

Medium Beam

Description

Combining ultra high efficiency and reliability you can count on, Dialight award winning Vigilant® high bay delivers outstanding light efficacy with up to 75% lower energy consumption and cost than conventional lighting. Ideal for heavy industry, manufacturing, power generation and cold storage, the Vigilant® high bay's durable, corrosion-resistant housing, high CRI LEDs and purpose built power supply are all backed by Dialight 10 years warranty.

Vigilant® High Bay Fixture, Medium Beam, 100 to 277 VAC, 120 to 250 VDC, 80 W Fixture, LED Lamp, 10 years Average Life, Neutral White Light, 4000 K Color, 80 CRI, Diffused Glass Lens, 9500 Lumens, NEMA 4X/IP66/IP67, Threaded/Pendant Mount, Copper-Free Aluminum Housing, Gray Housing, 16 in Dia

Application

Indoor/Outdoor Industrial, Manufacturing, Power Generation and Cold Storage Applications

Standards

UL 1598/A for Wet Locations | CSA C22.2 No. 250 | FCC Title 47 Subpart B Section 15 Class A | IEEE C62.41 | IEC 61000-3-2

Features

Superior dual coat finish with sealed polyester topcoat
-40 to 149 deg F wide operating temperature range
Without plug

Specifications

Average Life:	10 years
Color Rendering Index (CRI):	80
Color Temperature:	4000 K
Country of Origin:	MX
Dimensions:	16 in Dia
Enclosure Type:	NEMA 4X/IP66/IP67
Fixture Wattage:	80 W
Housing Finish:	Gray
Housing Material:	Copper-Free Aluminum
Lamp Type:	LED
Lens Type:	Diffused Glass
Light Color:	Neutral White
Lumens:	9500 Lumens
Mounting Type:	Threaded/Pendant
Voltage Rating:	100 to 277 VAC, 120 to 250 VDC
