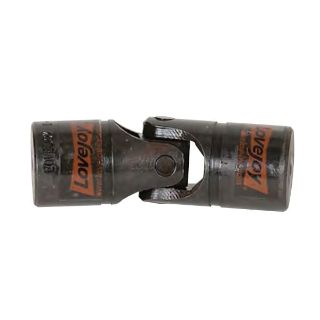

HD8B UJNT 3/4HBX3/4HB W/*PH LOV

HD-type Universal Joints incorporate induction hardened yoke ears for longer life using the standard pin and block design. It is ideal for applications with angles up to 25 deg and speeds of up to 1750 rpm. Boot retaining grooves are standard. HD-type are available in round, hex, splined or keyway bore. For optimal wear and extended life, lubrication and boots are required. (Boots are available for purchase separately.) HDD and HDDX drive line assemblies can also be provided to increase life of your drive line or drive shaft.

Lovejoy® Universal Joint, Type HD Finished Mixed Bore Pin and Block, HD8B Size, 0.75 in Dia x 1.06 in D Bore, 1-1/4 in Diameter Joint, 5220 in-lb Static Torque, 1750 rpm Maximum, 3-3/4 in Overall Length, 1.88 in Pin Height, 25 deg Maximum Misalignment Angle, Steel, Metallic
