HEM7MC2ADNWNGN DLG

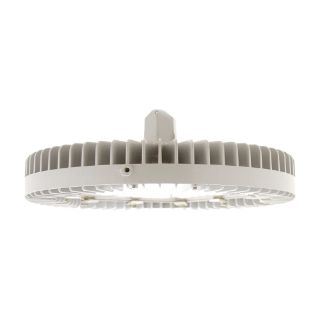

Picture of HEM7MC2ADNWNGN DLG
Actual Product May Vary From Image

Product Details

Manufacturer:
Dialight Corporation
Manufacturer part number:
HEM7MC2ADNWNGN
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

SafeSite®

Type

Corded Medium Beam

Description

Offering the widest range of hazardous certifications in the industry, Dialight SafeSite® high bay robustly withstands the harshest conditions and virtually eliminates lighting maintenance to improve site efficiency and safety. Designed for use in oil and gas (including offshore), chemical, mining, pulp and paper and other volatile environments. The SafeSite® high bay is rated for over 150000 hr and most models are covered by Dialight 10 years warranty.
SafeSite® High Bay Fixture, Corded Medium Beam, 100 to 277 VAC, 120 to 250 VDC, 80 W Fixture, LED Lamp, Cool White Light, 5000 K Color Temperature, 80 CRI, Clear Glass Lens, 9500 Lumens, STOOW 18 AWG Cord, NEMA 4X/IP66/IP67 Enclosure, 3/4 in NPT Pendant Mounting, Copper Free Aluminum Housing Material, Gray Housing Finish, 16-1/4 in Dia Dimensions

Application

Hazardous Location Applications

Standards

UL 844 for Wet Locations | Class I, Div 1 Groups C, D | Paint Spray Listed | CSA 22.2 No. 137-M81 | IEC 61000-3-2 | FCC Title 47 Subpart B Section 15 Class A

Specifications

Color Rendering Index (CRI):80
Color Temperature:5000 K
Cord Type:STOOW 18 AWG
Country of Origin:MX
Dimensions:16-1/4 in Dia
Enclosure Type:NEMA 4X/IP66/IP67
Fixture Wattage:80 W
Housing Finish:Gray
Housing Material:Copper Free Aluminum
Lamp Type:LED
Lens Type:Clear Glass
Light Color:Cool White
Lumens:9500 Lumens
Mounting Type:3/4 in NPT Pendant
Voltage Rating:100 to 277 VAC, 120 to 250 VDC
