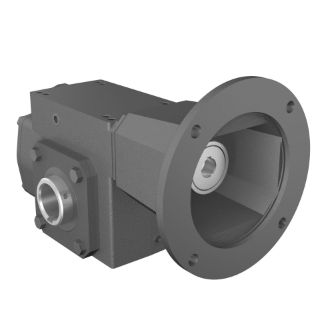

HERA35PS 52.50 143TC .750 HUB

Name: HERA35PS 52.50 143TC .750 HUB
Brand: Hub City
SKU: HERA35PS 52.50 143TC .750 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City

Manufacturer part number:

0250-56575

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction High Efficiency Right Angle

Description

Hub City® Helical Hypoid Reducer, Double Reduction High Efficiency Right Angle, Series: HERA®35, 52.50:1 Gear Ratio, 0.65 hp, C-Face Coupling Input, Hollow Bore Output, 0.876 in Dia Input, 3/4 in Dia Output, 33.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1100 in-lb, 2.509 in Centre Distance, 3/16 x 3/32 in Input, 3/16 x 3/32 in Output Keyway, 90 % Efficiency, CCW/CW Rotation, PAG Synthetic Oil Lubrication, Cast Iron, 7.19 in L x 5.5 in W x 5.75 in H

Application

Food Industry and Starch Inlet Conveyor

Standards

FDA Approved | USDA/NSF H1

Features

90% efficiency up to 2x torque
Four sizes can replace up to eleven sizes of worm speed reducers
Rolling action gearing (helical and hypoid)
Oversized bearings
FKM seals
Bronze bushing quill liner
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	2.509 in
Country of Origin:	US
Dimensions:	7.19 in L x 5.5 in W x 5.75 in H
Efficiency:	90 %
Gear Ratio:	52.50:1
Horsepower:	0.65 hp
Input Maximum Speed:	1750 rpm
Input Size:	0.876 in Dia
Input Type:	C-Face Coupling
Keyway Size:	3/16 x 3/32 in Input, 3/16 x 3/32 in Output
Lubrication Type:	PAG Synthetic Oil
Material:	Cast Iron
Output Maximum Speed:	33.3 rpm
Output Size:	3/4 in Dia
Output Type:	Hollow Bore
Rotation Type:	CCW/CW
Series:	HERA®35
Torque Rating:	1100 in-lb
