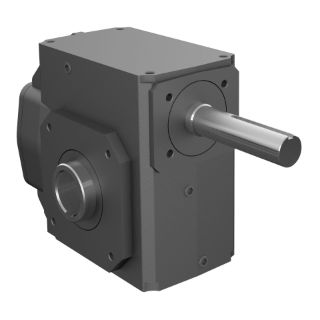

HERA55AS 10.77 (42) 1.188 HUB

Name: HERA55AS 10.77 (42) 1.188 HUB
Brand: Hub City
SKU: HERA55AS 10.77 (42) 1.188 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City

Manufacturer part number:

0250-55470

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction High Efficiency Right Angle

Description

Hub City® Helical Hypoid Reducer, Double Reduction High Efficiency Right Angle, Series: HERA®55, 10.77:1 Gear Ratio, 12.89 hp, Shaft Input, Hollow Bore Output, 1.248 in Dia x 4.88 in L Input, 1.188 in Dia Output, 162.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 4500 in-lb, 3.675 in Centre Distance, 1/4 x 1/8 in Input, 1/4 x 1/8 in Output Keyway, 90 % Efficiency, CCW/CW Rotation, PAG Synthetic Oil Lubrication, Cast Iron, 7-1/2 in W x 9-3/8 in H

Application

Food Industry and Starch Inlet Conveyor

Standards

FDA Approved | USDA/NSF H1

Features

90% efficiency up to 2x torque
Four sizes can replace up to eleven sizes of worm speed reducers
Rolling action gearing (helical and hypoid)
Oversized bearings
FKM seals
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	3.675 in
Dimensions:	7-1/2 in W x 9-3/8 in H
Efficiency:	90 %
Gear Ratio:	10.77:1
Horsepower:	12.89 hp
Input Maximum Speed:	1750 rpm
Input Size:	1.248 in Dia x 4.88 in L
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input, 1/4 x 1/8 in Output
Lubrication Type:	PAG Synthetic Oil
Material:	Cast Iron
Output Maximum Speed:	162.5 rpm
Output Size:	1.188 in Dia
Output Type:	Hollow Bore
Rotation Type:	CCW/CW
Series:	HERA®55
Torque Rating:	4500 in-lb
