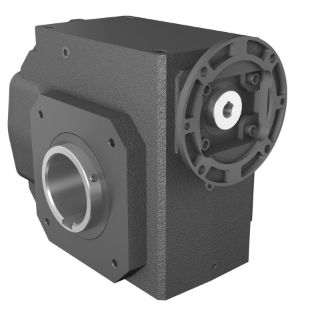

HERA75ES 30.14 213TC 1.938 HUB

Name: HERA75ES 30.14 213TC 1.938 HUB
Brand: Hub City
SKU: HERA75ES 30.14 213TC 1.938 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City

Manufacturer part number:

0250-55886

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction High Efficiency Right Angle

Description

Hub City® Helical Hypoid Reducer, Double Reduction High Efficiency Right Angle, Series: HERA®75, 30.14:1 Gear Ratio, 8.7 hp, C-Face Quill Input, Hollow Bore Output, 1.376 in Dia Input, 1.938 in Dia Output, 58.1 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 8500 in-lb, 4.287 in Centre Distance, 5/16 x 5/32 in Input, 1/2 x 1/4 in Output Keyway, 90 % Efficiency, CCW/CW Rotation, PAG Synthetic Oil Lubrication, Cast Iron, 9-1/2 in W x 11-3/8 in H

Application

Food Industry and Starch Inlet Conveyor

Standards

FDA Approved | USDA/NSF H1

Features

90% efficiency up to 2x torque
Four sizes can replace up to eleven sizes of worm speed reducers
Rolling action gearing (helical and hypoid)
Oversized bearings
FKM seals
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Dimensions:	9-1/2 in W x 11-3/8 in H
Efficiency:	90 %
Gear Ratio:	30.14:1
Horsepower:	8.7 hp
Input Size:	1.376 in Dia
Input Type:	C-Face Quill
Keyway Size:	5/16 x 5/32 in Input, 1/2 x 1/4 in Output
Lubrication Type:	PAG Synthetic Oil
Material:	Cast Iron
Output Type:	Hollow Bore
Rotation Type:	CCW/CW
Series:	HERA®75
