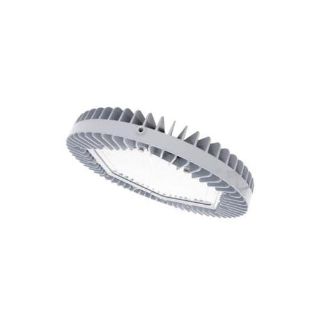

HEU4MC2ANNWNGN DLG

Name: HEU4MC2ANNWNGN DLG
Brand: Dialight Corporation
SKU: HEU4MC2ANNWNGN DLG
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Dialight Corporation

Manufacturer part number:

HEU4MC2ANNWNGN

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Vigilant®

Type

Medium Beam

Description

Combining ultra high efficiency and reliability you can count on, Dialight award winning Vigilant® high bay delivers outstanding light efficacy with up to 75% lower energy consumption and cost than conventional lighting. Ideal for heavy industry, manufacturing, power generation and cold storage, the Vigilant® high bay's durable, corrosion-resistant housing, high CRI LEDs and purpose built power supply are all backed by Dialight 10 years warranty.

Vigilant® High Bay Fixture, Medium Beam, 100 to 277 VAC, 120 to 250 VDC, 80 W Fixture, LED Lamp, 134 Lumens/W Light Output, 10 years Average Life, Cool White Light, 5000 K Color Temperature, 80 CRI, Polycarbonate Lens, 10750 Lumens, 10 ft 18 AWG STOOW Cord, NEMA 4X/IP66/IP67 Enclosure, Threaded/Pendant Mounting, Copper-Free Aluminum Housing Material, Gray Housing Finish, 16 in Dia Dimensions

Application

Indoor/Outdoor Industrial, Manufacturing, Power Generation and Cold Storage Applications

Standards

UL 1598/A for Wet Locations | CSA C22.2 No. 250 | FCC Title 47 Subpart B Section 15 Class A | IEEE C62.41 | IEC 61000-3-2

Features

Superior dual coat finish with sealed polyester topcoat
-40 to 149 deg F wide operating temperature range
Without plug

Specifications

Average Life:	10 years
Color Rendering Index (CRI):	80
Color Temperature:	5000 K
Cord Type:	10 ft 18 AWG STOOW
Country of Origin:	MX
Dimensions:	16 in Dia
Enclosure Type:	NEMA 4X/IP66/IP67
Fixture Wattage:	80 W
Housing Finish:	Gray
Housing Material:	Copper-Free Aluminum
Lamp Type:	LED
Lens Type:	Polycarbonate
Light Color:	Cool White
Light Output:	134 Lumens/W
Lumens:	10750 Lumens
Mounting Type:	Threaded/Pendant
Voltage Rating:	100 to 277 VAC, 120 to 250 VDC
