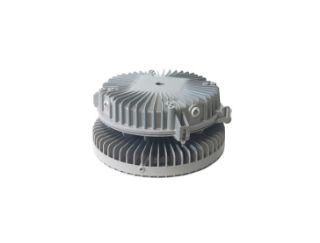

HEU7MNAEDNWNGN DLG

Name: HEU7MNAEDNWNGN DLG
Brand: Dialight Corporation
SKU: HEU7MNAEDNWNGN DLG
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Dialight Corporation

Manufacturer part number:

HEU7MNAEDNWNGN

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Vigilant®

Type

Medium Beam

Description

Combining ultra high efficiency and reliability you can count on, Dialight award winning Vigilant® high bay delivers outstanding light efficacy with up to 75% lower energy consumption and cost than conventional lighting. Ideal for heavy industry, manufacturing, power generation and cold storage, the Vigilant® high bay's durable, corrosion-resistant housing, high CRI LEDs and purpose built power supply are all backed by Dialight 10 years warranty.

Vigilant® High Bay Fixture, Medium Beam, 347 to 480 VAC, 215 W Fixture, LED Lamp, 10 years Average Life, Neutral White Light, 4000 K Color, 80 CRI, 0 to 10 VDC Dimming Ballast, Clear Glass Lens, 25250 Lumens, 10 ft 18 AWG STOOW Cord, NEMA 4X/IP66, Threaded/Pendant Mount, Copper-Free Aluminum Housing, Gray Housing, 14.8 in Dia x 7.3 in H

Application

Indoor/Outdoor Industrial, Manufacturing, Power Generation and Cold Storage Applications

Standards

UL 1598/A for Wet Locations | CSA C22.2 No. 250 | FCC Title 47 Subpart B Section 15 Class A | IEEE C62.41 | IEC 61000-3-2

Features

Superior dual coat finish with sealed polyester topcoat
-40 to 149 deg F wide operating temperature range
Dimmable to <5%
Without plug

Specifications

Average Life:	10 years
Ballast Type:	0 to 10 VDC Dimming
Color Rendering Index (CRI):	80
Color Temperature:	4000 K
Cord Type:	10 ft 18 AWG STOOW
Country of Origin:	MX
Dimensions:	14.8 in Dia x 7.3 in H
Enclosure Type:	NEMA 4X/IP66
Fixture Wattage:	215 W
Housing Finish:	Gray
Housing Material:	Copper-Free Aluminum
Lamp Type:	LED
Lens Type:	Clear Glass
Light Color:	Neutral White
Lumens:	25250 Lumens
Mounting Type:	Threaded/Pendant
Voltage Rating:	347 to 480 VAC

Resources
