HF1024414 HOF

IP54 10 in FF 24V 7035
Manufacturer: nVent HOFFMAN
Manufacturer part number: HF1024414
Availability: Expected Leadtime 13 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
2 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$524.00

Product Details

Brand Name

nVent HOFFMAN

Type

Fans and Filter Fans

Description

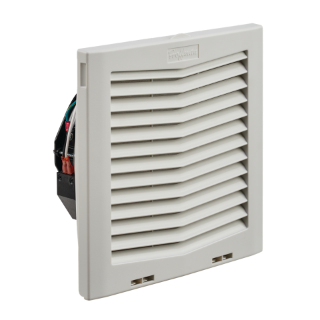

HF10 Side-Mount Filter Fan, 24V 159CFM, Lt Gray

Application

Controls and Drives; Power Distribution

Specifications

Airflow (Imperial):159 ft³/min
Airflow (Metric):270 m³/h
Ambient Temperature:14 to 131 deg F
Amperage Rating:0.88 A
Color:Light Gray
Color Code:RAL 7035
Country of Origin:CN
Depth (Imperial):5.18 in
Depth (Metric):132 mm
Finish:Smooth Matte
Flow Rate:159 CFM
Height (Imperial):10.13 in
Height (Metric):257 mm
Housing Material:Non-metallic
Material:Plastic
Max Current:1.2 A
Nominal Voltage:24 V
Operating Temperature (Imperial):14-131 °F
Operating Temperature (Metric):-10-55 °C
Size:10.13 x 10.14 x 5.18 in
Voltage DC:24-24 V
Voltage Rating:24 VDC
Weight (Imperial):4.3 lb
Weight (Metric):1.4 kg
Width (Imperial):10.14 in
Width (Metric):258 mm
