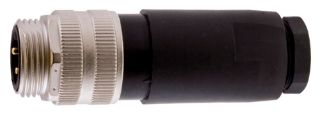

HIMS04F16 HWD

Name: HIMS04F16 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HIMS04F16 HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HIMS04F16

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

4-Pole Straight Male In-Line Plug

Description

Wiring Device-Kellems Mini-Quick® Field Attachable Connector, 4-Pole Straight Male In-Line Plug, 250 VAC, 9 A, 0.47 to 0.55 in Cable, 3.3 in Length, Neoprene O-Ring, Polyurethane/Polyamide Insert, Polybutylene Terephthalate Overmold, Aluminum Coupling Nut, Polybutylene Terephthalate Shell, 7/8-16 UN Thread, Environmental Conditions: IP67 Ingress Protection

Application

For quick connect/disconnect signal and control

Standards

ARRA Compliant | Buy American Act Compliant | CSA C22.2 No. 182.3/CSA C22.2 No. 94.2-07 | UL 2238

Features

High impact body design
Strain relief protects terminations
Superior contact design utilizing high performance gold over palladium nickel plating
Precision wire funnels eliminate stray strands

Specifications

Amperage Rating:	9 A
Cable Size:	0.47 to 0.55 in
Country of Origin:	DE
Coupling Nut Material:	Aluminum
Environmental Conditions:	IP67 Ingress Protection
Insert Material:	Polyurethane/Polyamide
Length:	3.3 in
O-Ring Material:	Neoprene
Overmold Material:	Polybutylene Terephthalate
Shell Material:	Polybutylene Terephthalate
Thread Size:	7/8-16 UN
Voltage Rating:	250 VAC
