HJ-283716 KOY

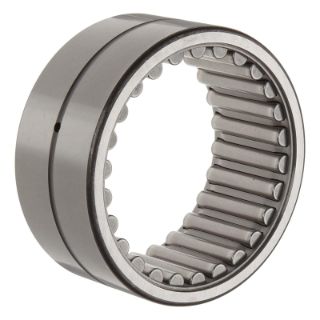

Koyo HJ-283716 Inch Series Caged Heavy Duty Needle Roller Bearing, 1-3/4 in Dia Bore, 2-5/16 in OD, 1 in W, 11200 lbf Dynamic/18200 lbf Static Load
Manufacturer: Koyo Bearings
Manufacturer part number: HJ-283716
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$35.78

Product Details

Brand Name

Koyo

Type

Caged Heavy Duty

Description

Heavy duty needle roller bearings consists of a machined and ground channel-shaped outer ring with a complement of needle rollers and a cage. The high-strength cage retains and guides the rollers. An optional lubrication groove and hole in the outer ring facilitates re-lubrication. These bearings can be used with or without machined and ground inner ring, depending on the suitability of the shaft as a raceway surface.
Koyo Needle Roller Bearing, Caged Heavy Duty, Series: HJ Inch Series, 1-3/4 in Bore, 2-5/16 in OD, 1 in Width, Open Closure, 11200 lbf Dynamic/18200 lbf Static Load, Steel Cage, 6400 rpm Grease/9900 rpm Oil Maximum, 250 deg F

Standards

ANSI/ABMA 18.1 | ASTM F2246 | Military Standard MS 51961

Features

  • Thick outer ring provides maximum load capacity and shock resistance with a relatively small radial cross section
  • Optimum speed and lubrication-retention capability
  • Without inner ring

Specifications

Bore Diameter:1-3/4 in
Cage Material:Steel
Closure Type:Open
Load Capacity:11200 lbf Dynamic/18200 lbf Static
Maximum Speed:6400 rpm Grease/9900 rpm Oil
Outside Diameter:2-5/16 in
Series:HJ Inch Series
Temperature Rating:250 deg F
Width:1 in
