HJ-729636 TKN

Name: HJ-729636 TKN
Brand: Timken
SKU: HJ-729636 TKN
Price: 663.80 USD
Availability: OutOfStock

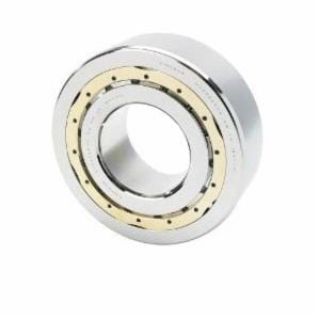

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

HJ-729636

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$663.80 / EA

Description

Brand Name

Timken®

Type

Heavy Duty

Description

A radial cylindrical roller bearing consists of an inner and/or outer ring and a complement of controlled-contour cylindrical rollers. Depending on the style of bearing, either the inner or the outer ring will have two roller-guiding ribs. The other ring, separable from the assembly, has one rib or none. The ring with two ribs axially locates the position of the roller assembly. The diameters of these ribs may be used to support the roller. One of the ribs may carry light thrust loads when an opposing rib is provided in the mating ring.

Timken® Radial Cylindrical Roller Bearing, Heavy Duty, Series: HJ Series, 4-1/2 in Bore Dia, 6 in Outside Dia, 2-1/4 in W, Open Closure, 64000 lb Dynamic/116000 lb Static, Steel Cage, 2800 rpm Grease/3200 rpm Oil Maximum, 302 deg F

Application

For use with IR-607236 inner ring designation

Standards

Meets MS 51961 Military Standard

Features

Clearance fit suggested for outer-ring when housing is stationary relative to load
Tight transition fit suggested if housing rotates relative to load
Unmarked end of outer-ring should be assembled against housing shoulder to clear maximum allowed housing fillet ra max (equal to rs min)

Specifications

Bore Diameter:	4-1/2 in
Cage Material:	Steel
Closure Type:	Open
Country of Origin:	US
Load Capacity:	64000 lb Dynamic/116000 lb Static
Maximum Speed:	2800 rpm Grease/3200 rpm Oil
Outside Diameter:	6 in
Series:	HJ Series
Temperature Rating:	302 deg F
Width:	2-1/4 in
