HK3026 INA

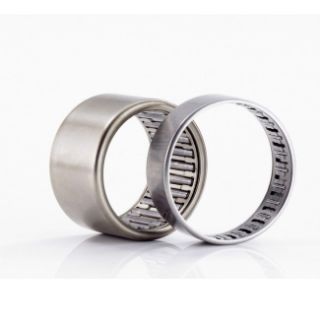

Picture of HK3026 INA
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
HK3026
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$16.42 / EA

Description

Brand Name

INA

Description

Drawn cup needle roller bearings with open ends are supplied with a needle roller and cage assembly or a full complement needle roller set. Bearings with needle roller and cage assemblies allow higher speeds than the full complement designs.
INA Drawn Cup Needle Roller Bearing, Series: HK Series, 30 mm Bore, 37 mm OD, 1 Rows, 26 mm Width, Open Closure, 54000 N Load, Sheet Steel Cage, 8600 rpm Maximum, -30 to 140 deg C

Features

  • The bearings are particularly suitable for applications with a very small radial section height on account of their very low cross-sectional height
  • Used if the housing bore is not suitable as a raceway for needle roller and cage assemblies
  • Can support high radial loads
  • Require a considerably smaller radial design envelope than machined needle roller bearings
  • Usually run directly on the shaft
  • Permit relatively high speeds
  • Easy to mount
  • Require no additional means of axial retention
  • Can be readily used to close off the shaft ends of bearing positions
  • Result in particularly compact, cost-effective and economical bearing arrangements
  • 28000 N dynamic/54000 N static

Specifications

Bore Diameter:30 mm
Cage Material:Sheet Steel
Closure Type:Open
Country of Origin:DE
Load Capacity:54000 N
Maximum Speed:8600 rpm
Number of Rows:1
Outside Diameter:37 mm
Series:HK Series
Temperature Rating:-30 to 140 deg C
Width:26 mm
