HK3516.2RS KOY

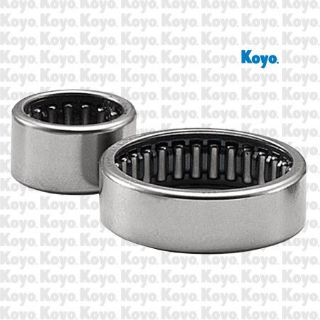

Picture of HK3516.2RS KOY
Actual Product May Vary From Image

Product Details

Manufacturer:
Koyo Bearings
Manufacturer part number:
HK3516.2RS
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Koyo

Type

Open End

Description

Drawn cup needle roller bearings support radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway to the rollers. The small cross-section of the drawn cup bearing provides high load-carrying capability with minimum required space, drawn cup bearings are easily installed with a press fit in the housing.
Koyo Drawn Cup Needle Roller Bearing, Open End, Series: HK Series, 35 mm Bore, 42 mm OD, 16 mm Width, Double Seal Closure, 21.4 kN Load, Steel Bearing, Steel Cage, 5500 rpm Grease Maximum, -25 to 225 deg F

Application

Transmissions, Transfer Cases, Engines, Valve Trains, Steering and Braking Systems, Axel Supports, Outboard Engines, Power Tools, Copiers, Fax Machines, Paper Moving Equipment and Appliances

Standards

AISI/SAE 52100 | ANSI/ABMA 18.1 | DIN 618 | JIS B 1536

Features

  • 13.4 kN dynamic/21.4 kN static load
  • Full complement bearings handle high radial load carrying capability
  • Caged bearings provide high speed and maximum lubricant retention capability

Specifications

Bearing Material:Steel
Bore Diameter:35 mm
Cage Material:Steel
Closure Type:Double Seal
Load Capacity:21.4 kN
Maximum Speed:5500 rpm Grease
Outside Diameter:42 mm
Series:HK Series
Temperature Rating:-25 to 225 deg F
Width:16 mm

Products Specifications

Brand Name
Koyo
