HL156YG BOS

Name: HL156YG BOS
Brand: Boston Gear
SKU: HL156YG BOS
Price: 428.21 USD
Availability: OutOfStock

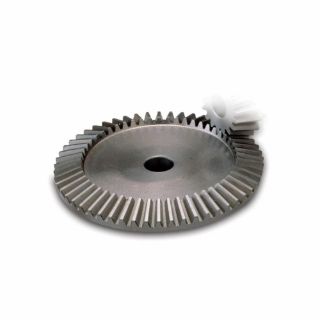

Actual Product May Vary From Image

Product Details

Manufacturer:

Boston Gear

Manufacturer part number:

HL156Y-G

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$428.21 / EA

Description

Brand Name

Boston Gear®

Type

Hardened Straight Tooth

Description

Boston bevel gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Bevel gears are similar to miter gears except bevel gears are used for 1.5:1 to 6:1 ratios. Straight tooth bevel gears are cut with a generated "coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth bevel gears are better suited for higher speeds and high torque applications.

Boston Gear® Bevel Gear, Hardened Straight Tooth, Series: HL Series, Bevel Gear, 1-1/2 in Bore, 5.07 in OD, 2:1 Gear Ratio, 40 Teeth, 8 Diametral Pitch, 5 in Pitch Diameter, 0.83 in Face Width, 3 in Diameter Hub, 1-1/4 in Hub Projection, 20 deg Pressure Angle, Steel

Application

For use with 90 deg intersecting shaft

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Specifications

Bore Diameter:	1-1/2 in
Country of Origin:	US
Diametral Pitch:	8
Face Width:	0.83 in
Gear Ratio:	2:1
Gear Type:	Bevel
Hub Diameter:	3 in
Hub Projection:	1-1/4 in
Material:	Steel
Number of Teeth:	40
Outside Diameter:	5.07 in
Pitch Diameter:	5 in
Pressure Angle:	20 deg
Series:	HL Series
