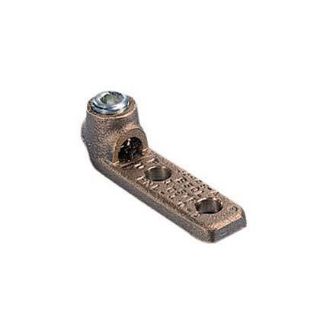

HL21-2N-5 PAN

Name: HL21-2N-5 PAN
Brand: Panduit
SKU: HL21-2N-5 PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

HL21-2N-5

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

1-Barrel

Description

Panduit®, HL21-2N-5, Mechanical Connector Lug, Type HL-2N, Stranded Copper Conductor, 2/0 to 4/0 AWG Conductor, 1/2 in Stud, 2 Bolt Holes, 3 in L x 1-1/4 in W x 1/4 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 1-Barrel, 9/16 in Hex Key, 90 deg C, 4.19 in L x 1.34 in H Dimensions

Application

For stranded copper code conductors

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 486A-486B File No. E52164

Features

Cast from high strength corrosion resistant copper alloy to provide premium electrical and mechanical performance
Wide wire range taking capability minimizes inventory requirements
Internal pressure plate provides uniform clamping force on conductor for premium electrical performance
Internal barrel serrations allow for premium wire pullout strength
Inspection window to visually assure full conductor insertion
Flat bottom allows for complete contact with mounting surface
Range taking, high strength corrosion resistant copper, premium pull out strength

Specifications

Conductor Size:	2/0 to 4/0 AWG
Conductor Type:	Stranded Copper
Country of Origin:	MX
Dimensions:	1-1/4 in W
Material:	Cast Copper
Number of Bolt Holes:	2
Series:	HL Series
Specifications:	1-Barrel, 9/16 in Hex Key
Stud Size:	1/2 in
Temperature Rating:	90 deg C
Tongue Size:	1/4 in THK
Tongue Type:	Straight
Voltage Rating:	600 VAC
