HLSK101YL BOS

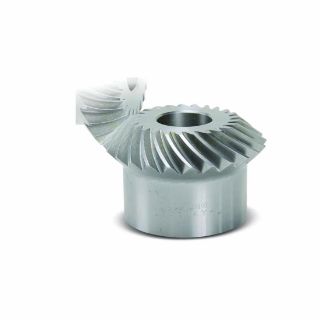

Boston Gear® HLSK101Y-L Spiral Miter Gear With Keyway and Setscrew, 12 Diametral Pitch, Left Hand Tooth Spiral, 20 deg Pressure Angle, 15 Teeth, 1-1/4 in Dia Pitch, 0.3 in W Face, 1/2 in Dia Bore, Steel
Manufacturer: Boston Gear
Manufacturer part number: HLSK101Y-L
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$108.52

Product Details

Brand Name

Boston Gear®

Description

Boston miter gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Miter gears are similar to bevel gears except miter gears are used for 1:1 ratios. Straight tooth miter gears are cut with a generated "Coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth miter gears are better suited for higher speeds and high torque applications.
Boston Gear® Spiral Miter Gear, 1/2 in Bore, 1.36 in OD, 1:1 Gear Ratio, 15 Teeth, 12 Diametral Pitch, 1-1/4 in Pitch Diameter, 0.3 in Face Width, 1 in Diameter Hub, 1/2 in Hub Projection, 0.864 in Overall Length, 20 deg Pressure Angle, Left Hand Tooth Spiral, 35 deg Spiral Angle, 1/8 x 1/16 in Keyway, Steel

Application

For use with 90 deg intersecting shaft

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Features

  • 90 deg intersecting shaft applications provide highly efficient operation
  • Hardened teeth offer versatility

Specifications

Bore Diameter:1/2 in
Country of Origin:US
Diametral Pitch:12
Face Width:0.3 in
Gear Ratio:1:1
Hub Diameter:1 in
Hub Projection:1/2 in
Keyway Size:1/8 x 1/16 in
Material:Steel
Number of Teeth:15
Outside Diameter:1.36 in
Overall Length:0.864 in
Pitch Diameter:1-1/4 in
Pressure Angle:20 deg
Spiral Angle:35 deg
Spiral Type:Left Hand Tooth
