HLSK118YL BOS

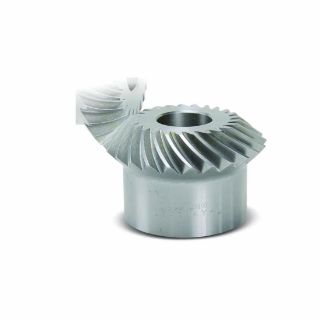

Picture of HLSK118YL BOS
Actual Product May Vary From Image

Product Details

Manufacturer:
Boston Gear
Manufacturer part number:
HLSK118Y-L
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$627.50 / EA

Description

Brand Name

Boston Gear®

Description

Boston miter gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Miter gears are similar to bevel gears except miter gears are used for 1:1 ratios. Straight tooth miter gears are cut with a generated "Coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth miter gears are better suited for higher speeds and high torque applications.
Boston Gear® Spiral Miter Gear, 1-1/4 in Bore, 4.22 in OD, 1:1 Gear Ratio, 24 Teeth, 6 Diametral Pitch, 4 in Pitch Diameter, 0.89 in Face Width, 3 in Diameter Hub, 1.31 in Hub Projection, 2.317 in Overall Length, 20 deg Pressure Angle, Left Hand Tooth Spiral, 35 deg Spiral Angle, 1/4 x 1/8 in Keyway, Steel

Application

For use with 90 deg intersecting shaft

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Features

  • 90 deg intersecting shaft applications provide highly efficient operation
  • Hardened teeth offer versatility

Specifications

Bore Diameter:1-1/4 in
Country of Origin:US
Diametral Pitch:6
Face Width:0.89 in
Gear Ratio:1:1
Hub Diameter:3 in
Hub Projection:1.31 in
Keyway Size:1/4 x 1/8 in
Material:Steel
Number of Teeth:24
Outside Diameter:4.22 in
Overall Length:2.317 in
Pitch Diameter:4 in
Pressure Angle:20 deg
Spiral Angle:35 deg
Spiral Type:Left Hand Tooth
