HM12 RBC

Heim® Bearings produces the industry's widest range of rod end types and sizes. Heim®'s product range includes rod ends with brass race inserts in standard, precision and high capacity designs, high strength two piece designs, self-lubricating rod ends with engineered thermoplastic races or Teflon® liners and military standard rod ends for the ultimate in rod end performance. Heim® also produces a complete line of ball bearing rod ends that have extremely low friction and accommodate misalignment. Heim® rod ends are also available with a variety of plating's, coatings and materials and with a wide range of optional features such as lubrication fittings, left hand threads and keyway slots.

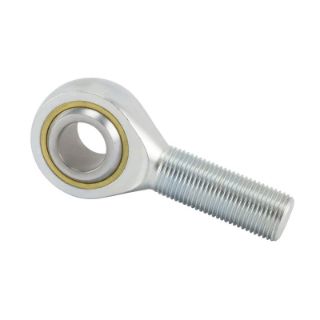

Heim® Spherical Plain Rod End, Male, Series: HM Series, 3/4 in Bore Dia, 1-3/4 in Outside Dia, 7/8 in Width, UNF-3A Thread, 3/4-16 Thread, 2-7/8 in Center Line Length, 11300 lb, 250 deg F, Carbon Steel, Steel, 3-3/4 in H
