HMF23KB5B5 BOS

Boston Gear®'s helical gear drives have been used in some of the most demanding applications and environments across a wide range of industries. We've designed the product line to include three different series in order to meet a broader array of application requirements. In addition, these compact, heavy duty gear drives are built to simplify maintenance and provide consistently reliable operation.

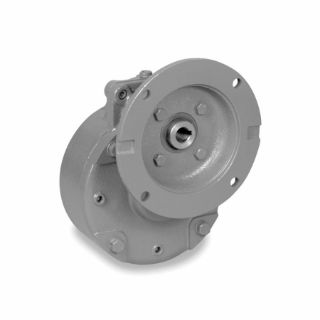

Boston Gear® Parallel Shaft Helical Gear Drive, Flanged Single Reduction Size 2, Series: HM Series, 3:1 Gear Ratio, 9.48 hp Input/7.5 hp Motor, Quill Input, Projecting Shaft Output, 5/8 in Input, 5/8 in Output, 583 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 944 in-lb, 2-7/8 in Centre Distance, 3/16 x 3/32 in Keyway, No Base Mount, Cast Iron, 7.74 in L x 9.52 in H
