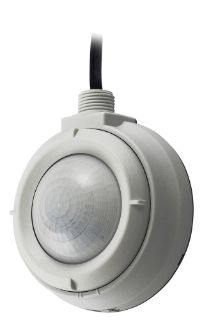

HMHB2LVPCW HWD

The H-MOSS® Watertight OptiMyzer® High Bay Occupancy Sensor utilizes highly advanced and accurate passive infrared (PIR) sensor technology for long range occupancy detection and enhanced false trip immunity. It is IP65 watertight and rated for outdoor use. It provides ON/OFF control of high bay fluorescent, LED and induction fixtures in food processing, outdoor, cold storage and similar applications. The sensor easily mounts directly to industrial T5, T5HO and T8 fixtures through an extended 1/2 inch chase nipple. The specially designed PIR lens provides 1.4:1 coverage up to 30 feet and 1.1:1 coverage to 45 feet. For deep body fixtures, an extension adapter is also available for positioning the sensor flush or below the bottom of the reflector for full field of view coverage. Optional lenses provide 180 deg, aisle and end-of-aisle coverage in addition to the supplied 360 deg area coverage lens. This sensor is available with either single or dual relays, making it the perfect solution for single or multiple-ballast fixtures. The single relay sensor features a primary timer for ON/OFF control for maximum energy savings. The dual relay sensor features two timers for multiple light level control (i.e. step dimming). The dual relay sensor also includes Smart Cycling technology which maximizes lamp and ballast life by ensuring that all lamps receive the same operating hours. Two built-in photosensors provide selectable upward and downward reading for automatic daylight harvesting.

Wiring Device-Kellems H-MOSS® OPTIMYZER™ High Bay Occupancy Sensor, Universal Watertight, 24 VDC, 500 mA, Passive Infrared Sensor, 0 to 45 ft Coverage, 360 deg Viewing, 8 s, 4/8/46/30 min Primary, 30/60/90 min Secondary Time Delay, Screw Connection, 12-Pin Dip Switch Interface, IP65 Enclosure, Fixture Mounting, -40 to 149 deg F, Thermoplastic, White, 4 in Dia x 1-1/2 in H Dimensions
