HOBART QMC10J200SM QM

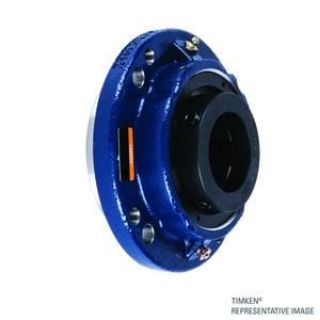

Picture of HOBART QMC10J200SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMC10J200SM
CBT Inventory
10
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
10
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
10 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$902.72 / EA

Description

Brand Name

Timken®

Type

Non-Expansion M Seal Solid Block

Description

The reduced eccentric offset of our EC series locking collar results in a secure shaft lock that is designed not to release from a properly prepared shaft. EC series housed units also are suitable for reversing applications.
Timken®, QMC10J200SM, Spherical Roller Bearing Housed Unit, Non-Expansion M Seal Solid Block, Series: EC Series, 2 in Bore, 3.8 in Bolt Center-to-Center Length, 5.38 in Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 6.38 in Overall Length/Diameter, 3.05 in Overall Depth, 6.38 in Overall Height, Eccentric Locking Device, Cast Steel Seal, 26300 lb Dynamic/26600 lb Static Load, 2000 rpm Grease/2400 rpm Oil Maximum

Application

For use with 2 in shaft diameter

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:3.8 in
Bolt Circle Diameter:5.38 in
Bore Diameter:2 in
Flange Mounting Type:4-Bolt Piloted
Load Capacity:26300 lb Dynamic/26600 lb Static
Locking Device:Eccentric
Maximum Speed:2000 rpm Grease/2400 rpm Oil
Overall Depth:3.05 in
Overall Height:6.38 in
Overall Length/Diameter:6.38 in
Seal Material:Cast Steel
Series:EC Series

Products Specifications

Brand Name
Timken
