HPMA06406 HWD

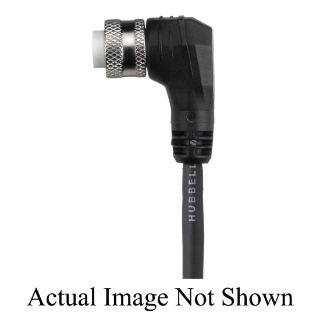

Picture of HPMA06406 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HPMA06406
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Standard

Description

Wiring Device-Kellems Mini-Quick® Control Plug, Standard, Right Angle Male Connector, 7/8-16 UN Connector, Nickel Plated Brass, SEOOW Cable, 6 ft Cable Length, PVC/TPE Cable, 6 Poles, 600 VAC/VDC, 7 A, 90 deg, Black/Blue/Green/Orange/Red/White Wire Pin Colors, IP67 IEC Rating, NEMA 4/4X/12/13

Application

Quick Connect/Disconnect Signal and Control Devices Applications

Standards

RoHS Compliant | UL 2238/50 File No. E192071 | CSA C22.2 No. 182.3/94.2-07 | cULus Listed

Features

  • Nickel plated brass metallic coupling nuts and receptacle shells
  • Black overmold and cable
  • Insulgrip® connector body design
  • Plating resists corrosion in high abuse environments
  • Cable assembly resists dirt and blends with environment giving a clean look to the installation
  • Third party certified for electrical, mechanical and environmental performance
  • Ergonomic connector body has an industrial look
  • -20 to 105 deg C temperature
  • 18 AWG copper conductor
  • 5 MW contact resistance
  • 1000 MW isolation resistance
  • -20 to 105 deg C STOOW and AWM2661, -40 to 105 deg C SEOOW cable
  • 500 hr salt spray per MIL-STD-1344, method 1001 corrosion resistance

Specifications

Amperage Rating:7 A
Angle:90 deg
Cable Length:6 ft
Cable Material:PVC/TPE
Cable Type:SEOOW
Connector Material:Nickel Plated Brass
Connector Size:7/8-16 UN
Connector Type:Male
Country of Origin:US
IEC Rating:IP67
NEMA Rating:NEMA 4/4X/12/13/IP66
Number of Poles:6
Voltage Rating:600 VAC/VDC
Wire Pin Colors:Black/Blue/Green/Orange/Red/White
