HR1616414 HOF

Name: HR1616414 HOF
Brand: nVent Hoffman
SKU: HR1616414 HOF
Price: 1,111.00 USD
Availability: OutOfStock

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

HR1616414

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 5 days

Estimated dates are contingent upon manufacturer stock.

$1,111.00 / EA

Description

Fans and Filter Fans

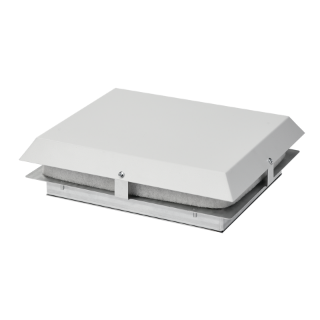

HR16 Top-Mount Filter Fan, 115V 266 CFM, Lt Gray, Steel

Power Distribution; Controls and Drives

Airflow (Imperial):	266 ft³/min
Airflow (Metric):	452 m³/h
Ambient Temperature:	14-131 F
Amperage Rating:	0.82 Amps
Blade Material:	Polyamide 66 Resin
Blade Size:	7.48 inch
Color:	Light Gray
Color Code:	RAL 7035
Country of Origin:	CN
Depth (Imperial):	4.18 in
Depth (Metric):	106 mm
Fan Speed:	2880 RPM
Finish:	Powder Coated
Flow Rate:	250 CFM
Frequency Rating:	50/60 Hz
Harmonized Code:	8414596560
Height (Imperial):	12.66 in
Height (Metric):	322 mm
Housing Material:	Mild Steel
Material:	Mild Steel
Max Current:	0.82 A
Motor Insulation:	TOTALLY ENCLOSED WITH CLASS F INSULATION
Motor Type:	AC
Mounting:	Top Mount
Nominal Voltage:	115 V
Operating Temperature (Imperial):	14-131 °F
Operating Temperature (Metric):	-10-55 °C
Phase:	1-phase
Power:	80 Watts
Shaft Diameter:	1.063 inch
Size:	12.66 x 15.81 x 4.18 inch
Sound Pressure Level:	70 dBA
Voltage AC:	100-100 V
Voltage Rating:	115 Volts
Weight (Imperial):	15 lb
Weight (Metric):	7.8 kg
Width (Imperial):	15.81 in
Width (Metric):	402 mm
