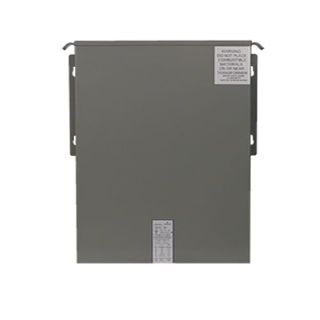

Actual Product May Vary From Image

HS12F5AS SHD

Name: HS12F5AS SHD
Brand: SolaHD (Emerson)
SKU: HS12F5AS SHD
Price: 1,644.91 USD
Availability: InStock

5KVA 120/208/240/277-120/240

Manufacturer: SolaHD (Emerson)

Manufacturer part number: HS12F5AS

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	1	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,644.91

Qty:

Product Details

Brand Name

SolaHD

Type

Automation Transformers - Non-Ventilated 50 VA to 45 kVA

Description

Non-Ventilated Automation Transformer, 5 KVA, Primary Amps: 18.0@ 277 V, Secondary Amps: 41.6/20.8, Primary Volts: 120/208/240/277, Volts Secondary: 120/240, Frequency: 60 HZ, Single Phase

Application

SolaHD encapsulated transformer rated for harsh industrial environments

Standards

cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66

Features

UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure.

Specifications

Country of Origin:	US
Enclosure:	NEMA 3R, Class 1 Div 2 Group A,B,C and D
Frequency Rating:	60 Hz
Height:	17 in
Input Voltage:	120/208/240/277 Volt Primary VAC
KVA Rating:	5
Length:	7 in
Maximum Input Current:	10.8 A
Maximum Output Current:	12.5/25 A
Number of Phases:	1
Output Voltage:	120/240 Volt Secondary
Temperature Rating:	115 DEG C Temperature Rise Under Full Load
Wattage:	3 kW
Width:	10 in

Resources

Spec Sheet Warranty
