HS71930-E-T-P4S-UL FAG

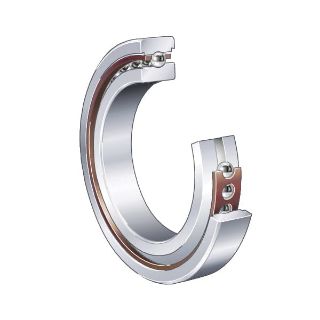

Picture of HS71930-E-T-P4S-UL FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
HS71930-E-T-P4S-UL
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

FAG

Description

FAG spindle bearings are super precision single row angular contact ball bearings with solid outer and inner rings, ball and cage assemblies and solid window cages. The dimensions are standardized. Due to their very narrow tolerances, the spindle bearings are particularly suitable for applications involving the highest requirements for guidance accuracy, such as bearing arrangements for main spindles in machine tools.
FAG Spindle Bearing, Series: Light Series, 150 mm Bore, 210 mm OD, 1 Rows, 28 mm Width, 25 deg Contact Angle, Open Closure, Fabric Cage, -30 to 100 deg C

Application

Lathes, Milling Machines, Drilling Machines, Machining Centers and Motor Spindles

Features

  • Suitable for very high speeds due to internal design with optimized friction and very low centrifugal forces on the rolling elements
  • Very high rigidity at high speeds
  • Light preload
  • Single bearing arrangement in any combination
  • FAG standard better than P4 to DIN 620
  • Laminated fabric, guidance on outer ring

Specifications

Bore Diameter:150 mm
Cage Material:Fabric
Closure Type:Open
Contact Angle:25 deg
Country of Origin:DE
Number of Rows:1
Outside Diameter:210 mm
Series:Light Series
Temperature Rating:-30 to 100 deg C
Width:28 mm

Products Specifications

Bore Size
150 mm
Brand Name
FAG
