HSJ10 FER

Name: HSJ10 FER
Brand: Mersen
SKU: HSJ10 FER
Price: 40.42 USD
Availability: OutOfStock

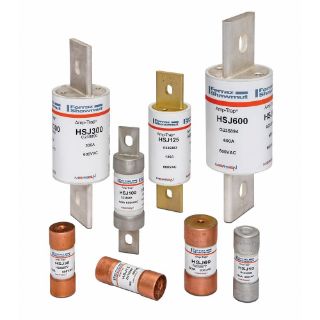

Actual Product May Vary From Image

Product Details

Manufacturer:

Mersen

Manufacturer part number:

HSJ10

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

$40.42 / EA

Description

Brand Name

Mersen

Type

Low Voltage High Speed North American Style

Description

The high speed class J (HSJ) combines the low I2t of a semiconductor fuse and the branch circuit performance of a class J UL listed fuse into a single design. The HSJ can provide both branch circuit protection per NEC requirements, as well as very low I2t for protection of power semiconductors such as diodes, SCRs, GTOs and SSRs.

Mersen Power Fuse, Low Voltage High Speed North American Style, Series: HSJ, Rejection, 10 A, 600 VAC/500 VDC, 100/200 kA Interrupt, Class: J, Ferrule Terminal, Clip Mount, Cylindrical Body, GMG, 0.81 in Dia x 2.25 in L Body Size

Application

Control Panels, Electronic Motor Controllers, Phase Controllers, Drives, Soft-Starters and Solid State Relays

Standards

RoHS Compliant | UL 248-8 Guide JDDZ File No. E2317 | DC Listed | CSA C22.2 File No. 248.8 | Class 1422-02 File No. 012636_0_000

Features

Optimized overload capability for withstanding elevated levels of current during electronic motor controller starts
Low I2t let-thru (thermal energy)
Excellent cycling ability for frequent starts/stops without nuisance opening
Current limiting
AC and DC ratings available
Compact size
200 kA at 600 VAC, 100 kA at 500 VDC interrupt rating

Specifications

Amperage Rating:	10 A
Body Size:	0.81 in Dia x 2.25 in L
Body Type:	Cylindrical
Class:	J
Country of Origin:	MX
Interrupt Rating:	100/200 kA
Material:	GMG
Mounting Type:	Clip
Rejection/Non-Rejection:	Rejection
Series:	HSJ
Terminal Type:	Ferrule
Voltage Rating:	600 VAC/500 VDC
