HSJ15 FER

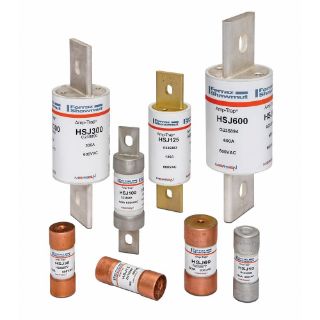

Picture of HSJ15 FER
Actual Product May Vary From Image

Product Details

Manufacturer:
Mersen
Manufacturer part number:
HSJ15
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 15 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$40.42 / EA

Description

Brand Name

Mersen

Type

Current Limiting Low Voltage

Alternate Supplier #

Grainger - 36A697

Description

The High Speed Class J (HSJ) combines the low I2t of a semiconductor fuse and the branch circuit performance of a Class J UL Listed fuse into a single design. The HSJ can provide both branch circuit protection per NEC requirements, as well as very low I2t for protection of power semiconductors such as Diodes, SCRs, GTOs and SSRs.
Mersen Amp-Trap® High Speed Fuse, Current Limiting Low Voltage, Series: HSJ, Rejection/Non-Rejection: Rejection, 15 A, 600 VAC/500 VDC, 200/100 kA Interrupt, Class: J, Ferrule Terminal, Clip Mount, Cylindrical Body, Fiber, 13/16 in Dia x 2-1/4 in L Body Size

Application

Branch Circuits, Control Panels, Electronic Motor Controllers, Phase Controllers, Drives, Soft-Starters and Solid State Relays Applications

Standards

RoHS Compliant | UL 248-8 | UL File No. E2137 | CSA C22.2 No. 248.8

Features

  • Optimized overload capability for withstanding elevated levels of current during electronic motor controller starts
  • Low I2T let-thru (thermal energy)
  • Excellent cycling ability for frequent starts/stops without nuisance opening
  • Compact size
  • Tin-plated copper, silver-plated copper contact
  • North American power fuses

Specifications

Amperage Rating:15 A
Body Size:13/16 in Dia x 2-1/4 in L
Body Type:Cylindrical
Class:J
Country of Origin:MX
Interrupt Rating:200/100 kA
Material:Fiber
Mounting Type:Clip
Rejection/Non-Rejection:Rejection
Series:HSJ
Terminal Type:Ferrule
Voltage Rating:600 VAC/500 VDC

Products Specifications

Amperage Rating
15 A
Brand Name
Mersen
Type
Class J
Voltage Rating
600 VAC
