HSTT06-48-Q PAN

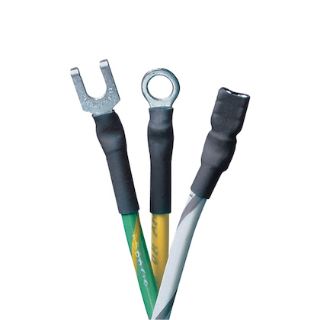

Panduit® Dry-Shrink™ HSTT06-48-Q HSTT Cross Linked Heat Shrink Tubing, 0.063 in ID Expanded, 0.031 in ID Recovered, 0.017 in THK Wall Recovered, 3.94 ft L, Polyolefin, Black
Manufacturer: Panduit
Manufacturer part number: HSTT06-48-Q
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1.90

Product Details

Brand Name

Panduit®

Type

Cross Linked

Description

Panduit® Dry-Shrink™ Heat Shrink Tubing, Cross Linked, Series: HSTT, 600 VAC, 0.063 in ID Expanded, 0.031 in ID Recovered, Thin Wall, 0.017 in Wall Thickness Recovered, 2:1 Shrink Ratio, 3.94 ft Length, -67 to 275 deg F, 194 deg F Shrink, Polyolefin, Black

Application

For dry locations, insulating, protecting color coding wires and cables

Standards

AMS-DTL-23053/5 Class 1 Military Specifications | ARRA Compliant | Buy American Act Compliant | CSA Certified | RoHS Compliant | UL Listed

Features

  • Flexible, flame-retardant and UV-resistant
  • Provides excellent abrasion protection and color coding
  • Heat shrink tubing shrinks around wires, connectors, joints and terminals when heated to protect against abrasion, fire and chemicals

Specifications

Color:Black
Country of Origin:KR
Inner Diameter Expanded:0.06 in
Inner Diameter Recovered:0.031 in
Length:3.94 ft
Material:Polyolefin
Series:HSTT
Shrink Ratio:2:1
Shrink Temperature:194 deg F
Temperature Rating:-67 to 275 deg F
Voltage Rating:600 VAC
Wall Thickness Recovered:0.017 in
Wall Type:Thin
