HSTT200-L PAN

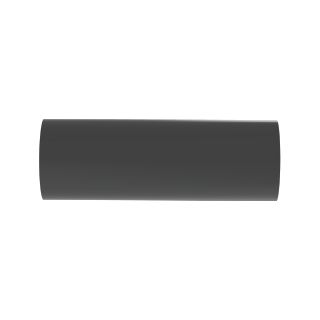

Panduit® Dry-Shrink™ HSTT200-L Cross Linked Standard Heat Shrink Tubing, 2 in ID Expanded, 1 in ID Recovered, 0.045 in THK Wall Recovered, 50 ft L, Polyolefin, Black
Manufacturer: Panduit
Manufacturer part number: HSTT200-L
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$279.64

Product Details

Brand Name

Panduit®

Type

Cross Linked Standard

Description

Panduit® Dry-Shrink™ Heat Shrink Tubing, Cross Linked Standard, Series: HSTT, 600 VAC, 2 in ID Expanded, 1 in ID Recovered, Thin Wall, 0.045 in Wall Thickness Recovered, 2:1 Shrink Ratio, 50 ft Length, -67 to 275 deg F, 194 deg F Shrink, Polyolefin, Black

Application

Dry Locations, Insulating, Protecting Wires and Cables Applications

Standards

AMS-DTL-23053/5 Class 1 Military Specifications | ARRA Compliant | Buy American Act Compliant | CSA Certified | RoHS Compliant | UL File No. E122770 Recognized

Features

  • 5 years shelf life
  • Flame-retardant, UV-resistant
  • Provides excellent abrasion protection and color coding

Specifications

Color:Black
Country of Origin:KR
Inner Diameter Expanded:2 in
Inner Diameter Recovered:1 in
Length:50 ft
Material:Polyolefin
Series:HSTT
Shrink Ratio:2:1
Shrink Temperature:194 deg F
Temperature Rating:-67 to 275 deg F
Voltage Rating:600 VAC
Wall Thickness Recovered:0.045 in
Wall Type:Thin
