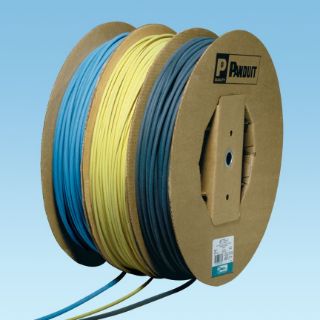

HSTTV06-M6 PAN

Product Details

Manufacturer:
Manufacturer part number:
HSTTV06-M6
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit

Type

Heat Shrink

Description

DRY-SHRINK Thin Wall Heat Shrink VW-1 Flame Rating, 0.063 Inch (1.6 mm) Diameter, 0.031 Inch (0.8 mm) Maximum Recovered Inside Diameter, 1000 Foot (304.8 Meter) Reel, Blue cross-linked Polyolefin Heat Shrink. Insulates a wide range of diameters and irregular shapes. Ultraviolet resistant material improves flame retardancy, chemical, and temperature resistance. Shrink Ratio is 2 to 1. Temperature Range is -67 degrees Fahrenheit to 275 degrees Fahrenheit (-55 degrees Celsius to 135 degrees Celsius). Voltage is 600 Volts. UL VW-1 Recognized. CSA Certified. Military Specification AMS-DTL-23053/5 Class 3.

Specifications

Color:Blue
Continuous Operating Temperature:-67°F - 275°F (-55°C - 135°C)
Flammability:VW-1
Length:1000 FT (304.8 m)
Material:Polyolefin cross-linked
Max. Recovered I.D.:0.031 IN
Min. Expanded I.D.:0.063 IN
Shrink Ratio:2:01
Sub Brand:Type HSTTV
Thickness:0.017 IN (0.4 mm)
