HUB125DN NER

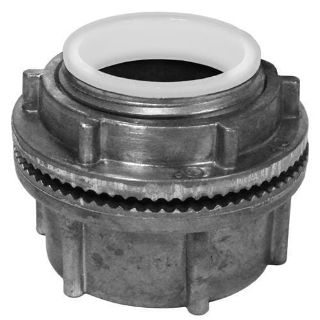

Appleton® NEER™ HUB125DN Watertight Conduit Hub, 1-1/4 in, For Use With IMC/Rigid Conduit, Die Cast Zinc
Manufacturer: Appleton
Manufacturer part number: HUB125DN
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
30 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$14.11

Product Details

Brand Name

Appleton®

Description

Appleton® zinc diecast hubs for use in wet or dry locations, indoors or outdoors. They are used to connect rigid metal conduit or IMC conduit to a threadless opening in an enclosure. The smooth, accurately machined NPT threads facilitate flawless installation.
Appleton® NEER™ Watertight Conduit Hub, Series: HUB, 1-1/4 in, For Use With: IMC/Rigid Conduit, Die Cast Zinc, 2.38 in OD x 1.9 in L

Application

Used to connect rigid or IMC conduit to a threadless opening in an enclosure

Standards

CSA Standard C22.2 No 18.3 | CSA Certified 065178 | NEMA FB-1 | UL 514B Listed | UL File No. E14814 | UL File No. E24264 | UL File No. E11853 | UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class III | NEC 501.10(B)(4), 502.10(A)(3), 502.10(B)(4), 503.10(A)(1)

Features

  • Rugged metallic construction ensures mechanical protection
  • Insulated throat, rated up to 221 deg F, prevents wire abrasion
  • Integral O-ring provides watertight seal
  • Unique profile permits easy wrenching
  • Smooth, accurately tapped threads facilitate installation
  • Watertight and corrosion resistant

Specifications

Country of Origin:IN
Dimensions:2.38 in OD x 1.9 in L
Material:Die Cast Zinc
Series:HUB
Size:1-1/4 in
Suitable For Use With:IMC/Rigid Conduit
