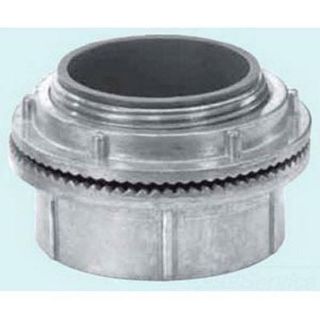

HUB150A APN

1-1/2 ALUMINUM WATERTIGHT HUBS
Manufacturer: Appleton
Manufacturer part number: HUB150A
Availability: 13 in stock
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 13 0
Loading...
$16.62 / EA

Product Details

Brand Name

Appleton

Type

Insulated Hub

Description

Insulated Hub, Size: 1-1/2 IN, Material: Aluminum, Enclosure: NEMA 2, 3, 3R, 4, 4X, 5, 12, 13, Insulation Class: 150 DEG C, Finish: Aluminum, Cable Entry: 2 IN Knock Out, Construction: Rugged Die-Cast, Length: 1.71 IN, Height: 2.74 IN, St

Application

For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure

Standards

UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1

Features

Rugged metallic construction ensures mechanical protection; May be used in wet or dry locations, indoors or outdoors; Insulated throat, rated up to 150 DEG C, prevents wire abrasion; Integral O-ring provides watertight seal; Unique profile permits easy wrenching; Smooth, accurately tapped threads facilitate installation; Watertight and corrosion resistant; Hole diameter: 1.92 - 2.02 IN; Panel thickness: 0.06 - 1/4 IN; Aluminum bodies and nuts, BUNA-N o-ring

Specifications

Cable Entry:2 IN Knock Out
Construction:Rugged Die-Cast
Country of Origin:CN
Enclosure:NEMA 2, 3, 3R, 4, 4X, 5, 12, 13
Finish:Aluminum
Insulation Class:150 DEG C
Material:Aluminum
Size:1-1/2 IN
