HUB150DN NER

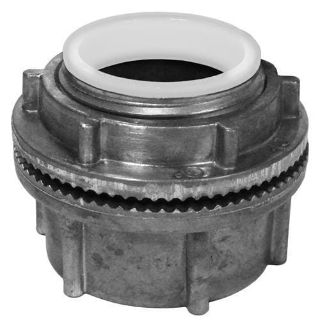

1-1/2 ZDC WATER TIGHT HUBS
Manufacturer: Appleton
Manufacturer part number: HUB150DN
Availability: 22 in stock
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
22 0 0
Loading...
$9.81 / EA

Product Details

Brand Name

Appleton/O-Z/Gedney

Type

Watertight Hubs

Description

Watertight Hubs, Zinc Diecast Hubs - Insulated, Class I, Div 2, Trade Size: 1-1/2", Body Length: 1.12", Thread Length: 0.78", Outside Diameter: 2.75"

Application

Used to Connect Rigid or IMC Conduit to a Threadless Opening in an Enclosure

Standards

UL Standard: 514B; UL Listed: E14814; CSA Standard: C22.2 No. 18.3; CSA Certified: 065178; NEMA: FB-1

Features

1-1/2 IN Trade Size Hub, Hole Dia. Min 1.92 IN, Hole Dia. Max 2.02 IN, Panel Thickness Min. 0.06 IN, Panel Thickness Max. 0.25 IN, Insulated Throat

Specifications

Country of Origin:USA
Material:Zinc Die Cast
Size:1-1/2 IN
Sub Brand:NEER
Temperature Rating:105 Degree C
