HUB50 APN

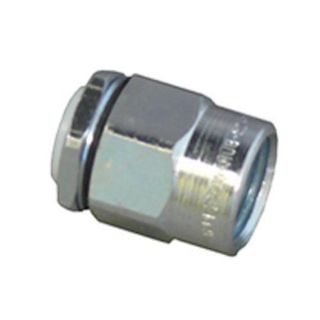

Appleton® HUB-50 Straight Conduit Hub, 1/2 in, For Use With IMC/Rigid Conduit, Steel, Zinc Electroplated
Manufacturer: Appleton
Manufacturer part number: HUB-50
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$15.41

Product Details

Brand Name

Appleton®

Type

Straight

Description

Appleton® HUB threaded conduit hubs are general purpose fittings designed for RMC and IMC. They provide a more vibration resistant connection with assured ground continuity. The HUB design is an insulated throat form with a bonding screw. The O-ring provides a watertight connection between the hub and an enclosure.
Appleton® Conduit Hub, Straight, Series: HUB, 1/2 in Size, For Use With: IMC/Rigid Conduit, Steel, Zinc Electroplated Finish, 1.08 in Dia x 1.11 in L Dimensions

Application

Used to connect rigid metal conduit or IMC to a threadless opening in an enclosure

Standards

UL 514B | UL File No. E14814 | CSA 065178/18.3 | NEMA FB-1 | Class I, Div 2 | ARRA Compliant

Features

  • Appleton® Uni-Seal rigid conduit hubs eliminate the need for welded hubs
  • Efficiency of installation is built into the superior design, single wrench installation
  • Patented hex-hub wedge adapter fits nearly flush against the interior side walls of enclosures, provides maximum wiring room
  • Simple two piece construction
  • Protective insulated throats, positive grounding and watertight sealing action
  • Flame resistant insulated throat eliminates need for end bushings
  • Built-in recessed gasket

Specifications

Country of Origin:MX
Dimensions:1.08 in Dia x 1.11 in L
Finish:Zinc Electroplated
Material:Steel
Series:HUB
Size:1/2 in
Suitable For Use With:IMC/Rigid Conduit
